The ExtraTech® M3513 Controller is our smallest controller and uses the RPC353 core. This compact product is versatile and designed to fit the smallest of applications. It measures a mere 11.5x9x4.7 cm. It is an Ethernet-enabled motion controller with integrated stepper motor drives.

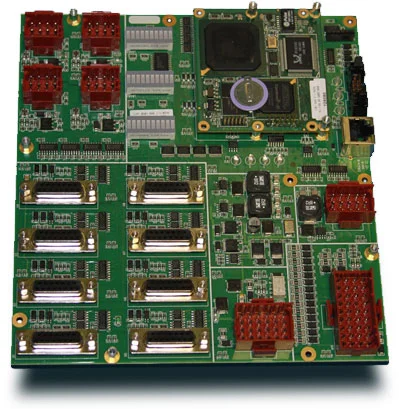

M3521 Advanced Controller
This new premier motion controller supports eight axes of motion and uses dedicated cables to eight motor drives. Also includes industrialized I/O, as well as serial and Ethernet host communications.
M3521 LITE Controller
The M3521 LITE is perfect for those advanced applications that only require four motor drives. Though optimized, it still maintains the familiar footprint, direct cables, industrialized I/O, and serial & Ethernet host communications found in the M3521 Advanced.
M3545 Advanced Controller
The M3545 is our next generation Ethernet enabled, high performance motion controller with integrated I/O. ExtraTech has optimized this linux-based controller to fit into a small space yet still provide a powerful motion engine and a modest amount of I/O’s to make a complete controller solution. The controller size is 16x10x4cm.

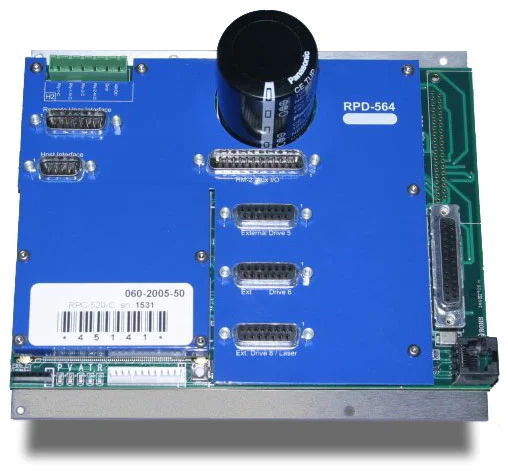

M3564 Controller and Stepper Drives
The M3564 is a four-axis motion controller with integrated stepper motor drives. With optimized motor drive technology, it's a compact controller with four motor drives and a modest amount of I/O.
M3568 Controller and Stepper Drives
The M3568 is an Ethernet-enabled, high performance motion controller with integrated I/O, and high-capability stepper motor drives.

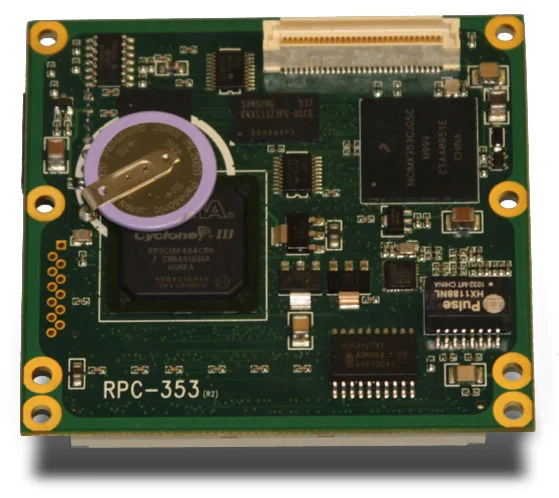

RPC353 Remote Processor Core
The RPC353 core is our newest processor, allowing for a greater range of versatility. Linux® based and multi-thread, it has greater speed and twice the memory. It also touts 10/100 Ethernet and USB capabilities. This unit is the motion engine in all of our latest controllers.
